Getting word timestamps in audio

Speechace segments and aligns user audio at the word, syllable, and phoneme levels. The Speechace API provides detailed extent information for each level:

  • Syllable Level: Data is returned in the syllable_score_list[] array.

  • Phoneme Level: Data is returned in the phone_score_list[] array.

The extent[] field contains begin and end timestamps for that syllable or phoneme in units of 10 msec.

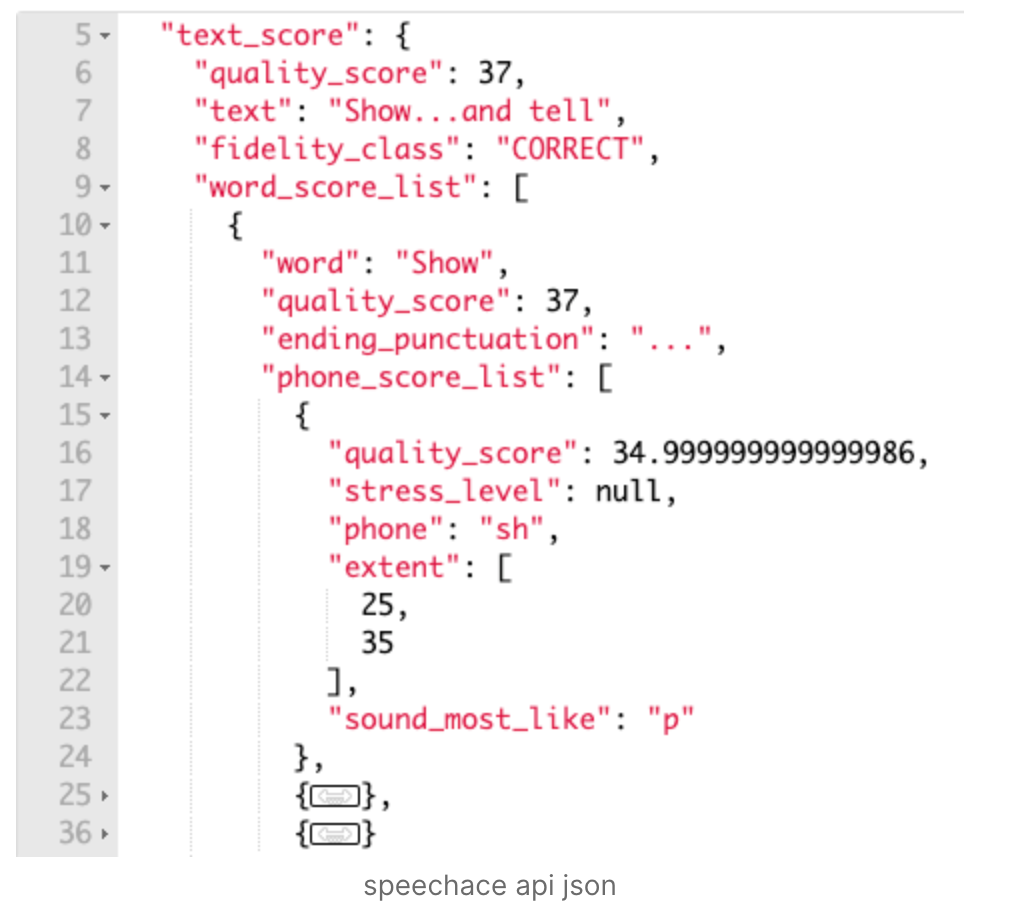

In the example below the phoneme /sh/ is at msec 250 to 350 in the user audio file:

Timestamp extent information can be used to zoom in and playback specific words, allowing for the demonstration of a test-taker's mistakes or the correct pronunciation of a word from a reference example.

To do so you need to iterate through the Speechace API JSON result as follows:

for each word in text_score.word_score_list[]

    get first and last elements of phone_score_list[] for that word

    start_timestamp is extent[0] for the first element
    end_timestamp is extent[1] for the last element

    # timestamps are in unit of 10 msec
